Professional Turnkey PCB Fabrication & Assembly Services. From fast prototyping in 24 hours to high-volume production with guaranteed quality.
From prototype design to full-scale automated PCBA mass production.
Discover flexible design options with our quick and affordable prototyping service. Once your design is finalized, seamlessly transition to large-scale production.
Featuring 24-hour fast turn, 100% flying probe electrical testing, and RoHS compliance—maximizing cost efficiency with zero MOQ.
Specialized in 4 to 64 layers high-density boards, any-layer HDI, blind/buried micro-vias, rigid-flex, and high-frequency Rogers/PTFE materials.
Manufactured to IPC-6012 Class 2 & Class 3 standards, fully certified under IATF 16949 and ISO 13485 for mission-critical reliability.
Precision 1-8 layer polyimide (PI) flexible circuits and up to 20-layer rigid-flex boards with PI, FR-4, or stainless-steel stiffeners.
Engineered for dynamic bending reliability across wearables, medical endoscopes, automotive sensors, and compact aerospace assemblies.
Our professional PCB assembly services include component mounting, soldering, and functional testing, providing tailored electronic manufacturing solutions.
We proudly adhere to rigorous industry standards, holding certifications like IATF 16949:2016, ISO 13485:2016, and ISO 9001:2015.
Our seasoned procurement team brings deep expertise and a robust global network of top-tier supply chain partners, built through years of dedicated industry experience.
We navigate electronic component sourcing with precision and strategic insight, guaranteeing 100% authentic, traceable parts.
Our experienced PCB design team combines deep industry expertise with innovative solutions, delivering high-quality, tailored design services.
We collaborate closely with clients to transform ideas into precise, reliable layouts that optimize performance across every project.
Precision manufacturing specifications to match your design requirements
| Parameters | Standard Capability | Advanced Capability |
|---|---|---|
Layer Count | 1 - 14 Layers | Up to 64 Layers |
Materials | FR-4, Aluminum Core, Rogers, CEM-1, Halogen-Free FR-4, Copper Core | FR-4, HDI (Buried/Blind Vias) (High-TG option available) |
Min Track / Spacing | 3mil / 3mil (0.075mm / 0.075mm) | 3mil / 3mil (HDI: 2.5mil / 2.5mil) |
Board Thickness | 0.4mm - 3.2mm (Rogers: 0.2mm - 1.5mm) | 0.4mm - 4.8mm |
Min Drill / Hole Size | 0.15mm (Mechanical Drill) | 0.15mm (Mechanical Drill) / 0.10mm (Laser Micro-Via) |
Surface Finish | HASL, Lead-free HASL, OSP, ENIG (1U" - 3U"), ENEPIG, Immersion Silver/Tin, Hard Gold Plating | ENIG (1U" - 5U"), ENEPIG, Hard Gold Plating, Immersion Silver/Tin, OSP, HASL |
Copper Weight (Outer / Inner) | Outer: 1oz - 6oz | Inner: 0.5oz - 4oz | Outer: 1oz - 6oz | Inner: 0.5oz - 4oz (Heavy Copper) |
Impedance Control | Supported (Tolerance ±10%) | Tight Tolerance Control (±5% or ±10%) |
Special Technologies | Castellated Holes, Countersunk Holes, Edge Plating, Press-fit Holes, Chamfering | Blind/Buried Vias (HDI), Castellated Holes, Countersunk Holes, Edge Plating, Carbon Ink, Peelable Mask, Press-fit Holes, Chamfering |
Skip tedious manual parameter entry—upload your Gerber package to auto-detect board specs, catch DFM risks early, and jump straight to instant pricing.
Drop your Gerber RS-274X or ODB++ (.zip/.rar/.tgz) archive to automatically parse layer count, board outline dimensions, min trace/space, drill sizes, and surface finish.
Automatically scans trace/space bottlenecks, micro-via ratios, annular rings, solder mask dams, and copper balance to prevent manufacturing holds and reduce unit cost.
Click "1-Click Quote" to transfer all extracted specs and your uploaded Gerber file directly into the Standard or Advanced PCB calculator with zero manual re-entry.
Auto-detects board outline & copper/drill layer order
Scans 3mil standard & 2.5mil HDI clearance thresholds
Verifies ≥0.15mm mechanical & 0.10mm laser micro-vias
Checks pad-to-hole ring & copper-to-outline spacing
Validates BGA solder mask dams & ENIG/HASL rules
Binds parsed ZIP archive directly to quote session
Take a visual tour of our high-quality boards and assembled electronic products

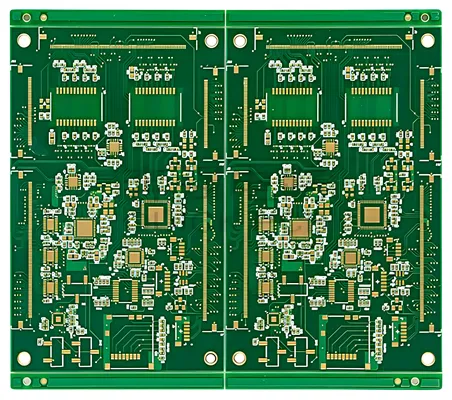

2L

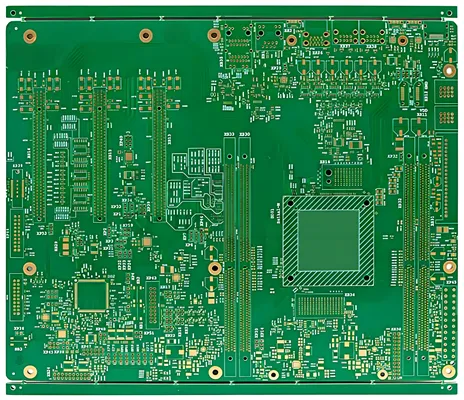

4L

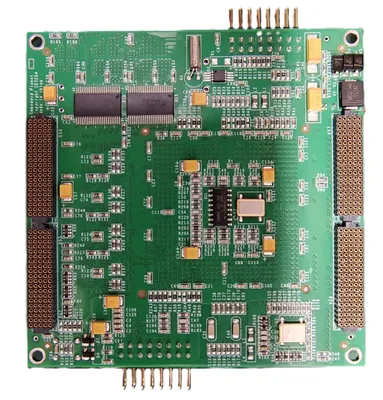

6L

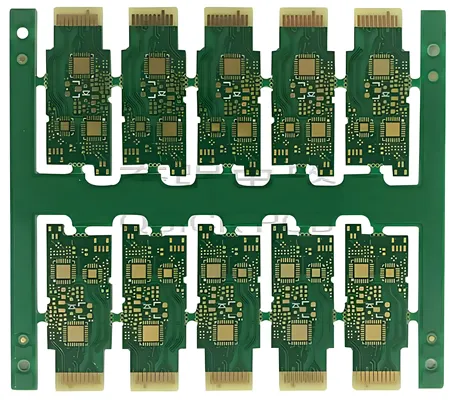

10L

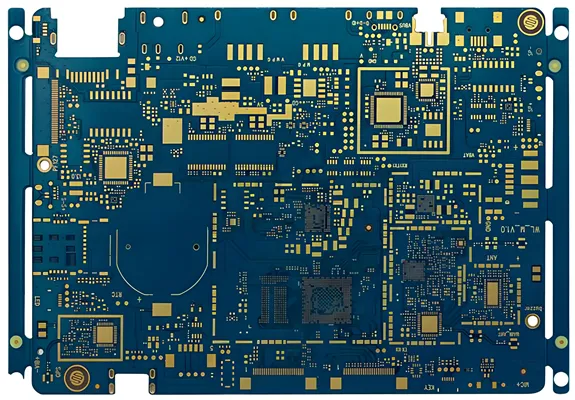

8L

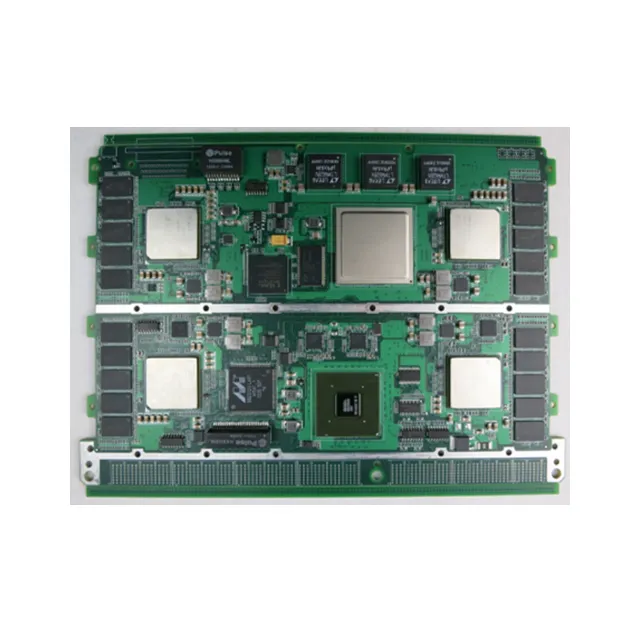

10L 2nd Order

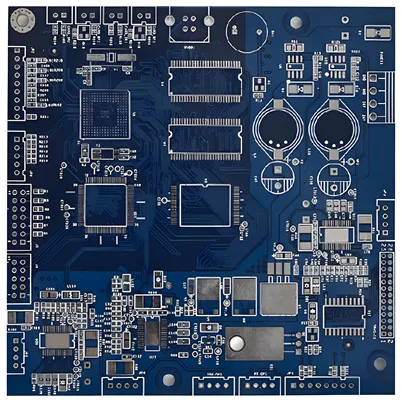

12L
12LAt the forefront of the electronics manufacturing industry, we are a technology-driven company dedicated to delivering exceptional, precision-engineered PCB fabrication and PCB Assembly (PCBA) solutions. Our comprehensive service spectrum caters to businesses of all scales—from startups to global enterprises—providing turnkey PCB manufacturing and kitted or consigned assembly with unparalleled flexibility and performance.
With over a decade of industry expertise, we specialize in handling diverse production requirements, from quick-turn prototypes to complex, high-density multilayer boards and automated SMT/THT assembly. Our advanced technological infrastructure, automated optical inspection (AOI/SPI/X-Ray), and robust component supply chain enable us to meet the most demanding specifications with remarkable consistency and cost-effectiveness. Learn More About Us →
Simplified end-to-end procurement process from instant Gerber upload to doorstep delivery.
Why global hardware developers and engineering teams trust PCBPath for mission-critical electronic manufacturing.
Serving hardware engineers, startups, and Fortune 500 R&D teams across 100+ countries with multi-currency checkout and dedicated engineering support.
120+ senior CAM and PCBA engineers combining automated online Gerber DFM pre-checks with 1-on-1 manual review before production begins.
Four specialized manufacturing bases for rigid, HDI, flex, and SMT assembly—delivering 99.4% on-time shipment via DHL & FedEx in 3-5 days.
Zero MOQ from 5-piece bare-board prototypes or 1-piece PCBA builds to high-volume production, shipping 600+ verified parcels daily.
More than 15,000+ engineers and makers choose PCBPath
Real feedback and ratings from hardware engineers, developers, and founders across 100+ countries.
Got questions? We've got answers to help you get started
Simply upload your Gerber (.zip/.rar/.tgz) or ODB++ archive at /free-online-gerber-viewer. Within 3 seconds, our engine extracts board dimensions, layer count, min trace/space, min drill size, copper weight, and surface finish while running a free 18-item DFM & cost-down audit. Click "1-Click Quote" to transfer all extracted specs and your Gerber file directly to the quote page without manual typing or re-uploading.
We support standard Gerber RS-274X, Gerber X2, ODB++ archives, as well as native Altium Designer (.PcbDoc), KiCad (.kicad_pcb), and Eagle (.brd) files. Please include all copper layers, solder mask layers, silkscreen layers, board outline, and NC Drill files.
Choose Standard PCB Quote for 1-14 layer FR-4, Aluminum, Copper-core, CEM-1, or Halogen-Free boards with trace/space ≥3mil/3mil and mechanical drills ≥0.15mm. Choose Advanced PCB Quote for 16-64 layers, blind/buried vias (HDI), 0.10mm laser micro-vias, 2.5mil fine-line routing, Rogers high-frequency laminates, or custom stackups.
Standard 2-layer and 4-layer PCB prototypes support expedited 24-hour and 48-hour build times; 6-14 layer boards typically take 4-6 working days. Turnkey PCBA assembly takes 2-5 working days once components arrive. Global express shipping via DHL, FedEx, or UPS takes 3-5 days.
Yes! We support Full Turnkey (we source 100% of parts via direct API integration with DigiKey, Mouser, Element14, and LCSC), Kitted/Consigned (you supply all parts), and Partial/Combo Turnkey. All sourced components are 100% genuine and traceable.
You can pre-calculate microstrip and stripline stackups using our free Online Impedance Calculator (/pcb-impedance-calculator) and select "Impedance Control" when quoting. Our CAM engineers verify dielectric constants (Dk) and test coupons with TDR equipment to guarantee ±10% standard or ±5% precision tolerance.
Your uploaded Gerber, BOM, and Pick-and-Place files are encrypted via TLS 1.3 and strictly isolated for your quotation, DFM check, and production only. We never share designs with third parties and gladly sign legally binding Non-Disclosure Agreements (NDAs).
We have no strict MOQ: bare PCB prototypes start from just 5 pieces, and PCB Assembly (PCBA) starts from 1 piece. Once your prototype is validated, you can scale seamlessly to 10,000+ mass-production units with automatic volume tier discounts.
All bare PCBs are fabricated to IPC-A-600 Class 2 (Class 3 available) and undergo 100% flying-probe or fixture electrical testing plus automated optical inspection (AOI). All PCBA boards follow IPC-A-610 standards with 100% 3D SPI, post-reflow 3D AOI, and 3D X-Ray inspection for BGA/QFN packages.
We accept Visa, MasterCard, American Express, PayPal, and bank wire transfer (T/T). Downloadable Commercial Invoices and packing lists are automatically generated in your account dashboard for every order.
